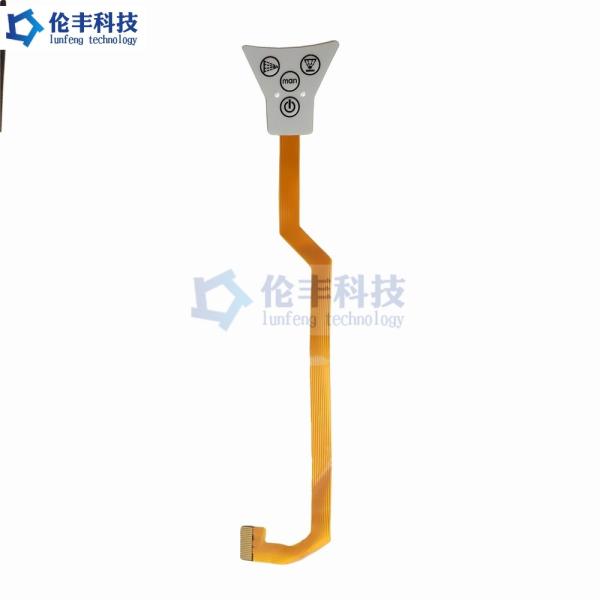

Circuit Fpc Membrane Switch Green LED UV Coating Waterproof Touch Keyboard

Brand Name : Lunfeng

Model Number : MDMS-941

Certification : ISO9001:2015

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 7-25 working days, To be negotiated

Packaging Details : First put into a polybag, then paked into a carton. According to clients' special requirements.

Product name : LED Membrane Switch with FPC circuit and green LED

Application : home appliance, Medical Equipment

Color : Pantone or RAL color, blue, red, green, black

Materials : PET, LEDs metal dome, hole

Rear adhesive : 3M468, 3M467

Size : rectangle shape, Customized Size

Leds : yellow LED

Printing : UV Coating

Contact Now

LED Membrane Switch with FPC circuit and green LED

LEDs are used primarily as indicator lights, and are a popular, low-cost, point-source lighting method. Embedded LED’s emit very little heat, and come in a variety of colors including red, yellow, green, blue, white, and bi-color lamp packages. Various intensities are available, some of which are especially designed for viewing in outdoor environments.

Surface mount LEDs can be bonded into our polyester switch constructions, which provide a reliable, cost effective light source. An even greater variety of lamp packages can be used in PCB Membrane Switches and Copper Flex Membrane Switches, and can be through-hole soldered, which enhances durability.

1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180

2.Mechanical Properties

Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3.Environmental and Storage Conditions

Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
